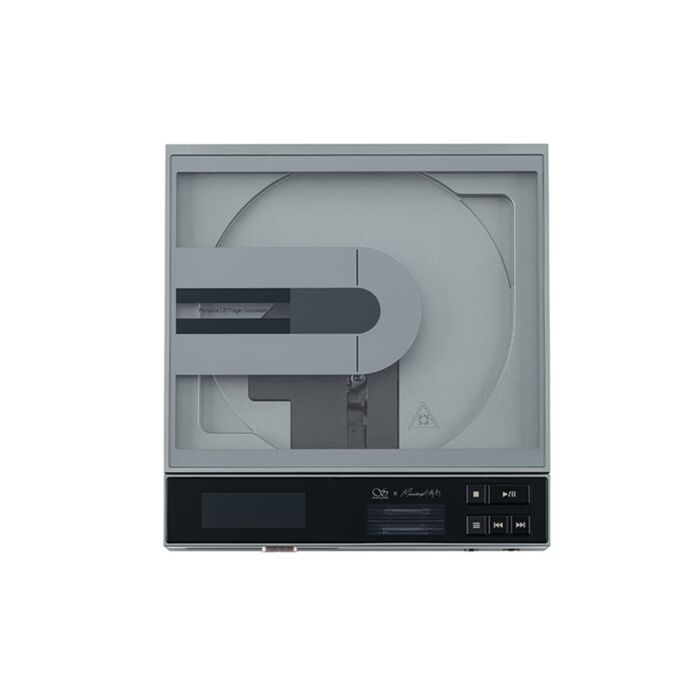

Shanling x Moondrop Crossover EC Zero T CD Player
$739.00
In stock
SKU
SLECZTCDP
- 1.68-inch Color LCD Screen.
- Kunlun 24-bit R2R DAC.
- AD8397 dual operational amplifier.
- 2 × JAN6418 military-grade miniature vacuum tubes.
- 3.5mm Single-Ended + 4.4mm Balanced Pentaconn.
- Up to 8 hours of battery life.
Shanling x Moondrop Crossover EC Zero T CD Player:
"Kunlun" 24-bit R2R DAC Architecture
The Shanling x Moondrop Crossover EC Zero T CD Player is equipped with Shanling's in-house developed "Kunlun" 24-bit R2R DAC architecture, using 192 precision resistors for a pure analog conversion path. This is paired with two JAN6418 military-grade miniature vacuum tubes, enabling switchable Tube Mode and Transistor (AB) Mode for different sonic signatures.
Dual AD8397 DAC
The Crossover edition uses a dual AD8397 operational amplifier and audio-grade Rubycon capacitors. This combination delivers a wider dynamic range, higher current output capability, and enhanced power supply stability, resulting in sharper mid-high frequency resolution.
Bluetooth 5.3
The EC Zero T Crossover features a Bluetooth 5.3 chip, assuring compatibility with the latest Bluetooth headphones and improving connectivity.
3.5mm Single-Ended Output & 4.4mm Balanced
The EC Zero T Crossover features a 3.5mm single-ended output and a 4.4mm balanced Pentaconn output, offering flexibility for both standard and balanced headphones.
Long Battery Life
The EC Zero T Crossover is powered by a 5500mAh battery, which provides up to 8 hours of battery life.
Package
- CD Player × 1
- PU Leather Case × 1
- Protective Leather Case Carrying Strap × 1
- Acrylic Display Stand for CD Player × 1 set
- Special Replica Discs (Yuki Minazuki bonus collectibles) × 3
- USB Data Cable × 1
- Quick Start Guide × 1
- User Manual × 1
- Warranty Card × 1
Specification
- Display: 1.68-inch LCD Screen
- Supported Formats: PCM 768kHz/32bit, DSD512
- Gain Compensation: High / Low
- DAC Architecture: In-house developed "Kunlun" 24-bit R2R DAC
- Digital Filter: OS / NOS (Oversampling / Non-Oversampling)
- Bluetooth Version: 5.3
- Bluetooth Transmit Support: aptX LL, aptX HD, aptX, AAC, SBC
- Dimensions: 158 × 150 × 28 mm
- Weight Approx.: 669g
3.5mm Single-Ended Headphone Output
| Mode | Gain | Power @ 32Ω | Voltage @ 32Ω |
|---|---|---|---|
| Transistor | Low | 37mW | 1.35 Vrms |
| High | 217mW | 2.64 Vrms | |
| High (DC Power) | 361mW | 3.4 Vrms | |
| Tube | Low | 39mW | 1.12 Vrms |
| High | 151mW | 2.2 Vrms | |
| High (DC Power) | 361mW | 3.4 Vrms |
Transistor Mode: THD+N 0.02% | Dynamic Range 117dB | Channel Separation 79dB | SNR 117dB | Noise 113dB (Low Gain) | USB DAC FR: 20Hz–40kHz (-0.5dB) | CD Play FR: 20Hz–20kHz (-0.5dB)
Tube Mode: THD+N 1% | Dynamic Range 115dB | Channel Separation 79dB | SNR 115dB | Noise 110dB (Low Gain) | FR: 20Hz–40kHz (-0.5dB)
4.4mm Balanced Headphone Output
| Mode | Gain | Power @ 32Ω | Voltage @ 32Ω |
|---|---|---|---|
| Transistor | Low | 211mW | 2.6 Vrms |
| High | 845mW | 5.2 Vrms | |
| High (DC Power) | 1200mW | 6.2 Vrms | |
| Tube | Low | 151mW | 2.2 Vrms |
| High | 605mW | 4.4 Vrms | |
| High (DC Power) | 1162mW | 6.1 Vrms |
Transistor Mode: THD+N 0.02% | Dynamic Range 117dB | Channel Separation 103dB | SNR 117dB | Noise 108dB (Low Gain) | USB DAC FR: 20Hz–40kHz (-0.5dB) | CD Play FR: 20Hz–20kHz (-0.5dB)
Tube Mode: THD+N 1% | Dynamic Range 116dB | Channel Separation 103dB | SNR 116dB | Noise 107dB (Low Gain) | FR: 20Hz–40kHz (-0.5dB)
Line Output
| Output | Mode | Output Voltage | Frequency Response | THD+N | SNR |
|---|---|---|---|---|---|
| 3.5mm Line Out | Transistor | 2.12 Vrms | 20Hz–40kHz (-0.5dB) | 0.02% | 116dB |
| Tube | 1.8 Vrms | 20Hz–40kHz (-0.5dB) | 1% | 115dB | |
| 4.4mm Line Out | Transistor | 4.2 Vrms | 20Hz–40kHz (-0.5dB) | 0.02% | 118dB |
| Tube | 3.6 Vrms | 20Hz–40kHz (-0.5dB) | 1% | 117dB |
| Compatible | Other |
|---|---|
| Category | Other |
