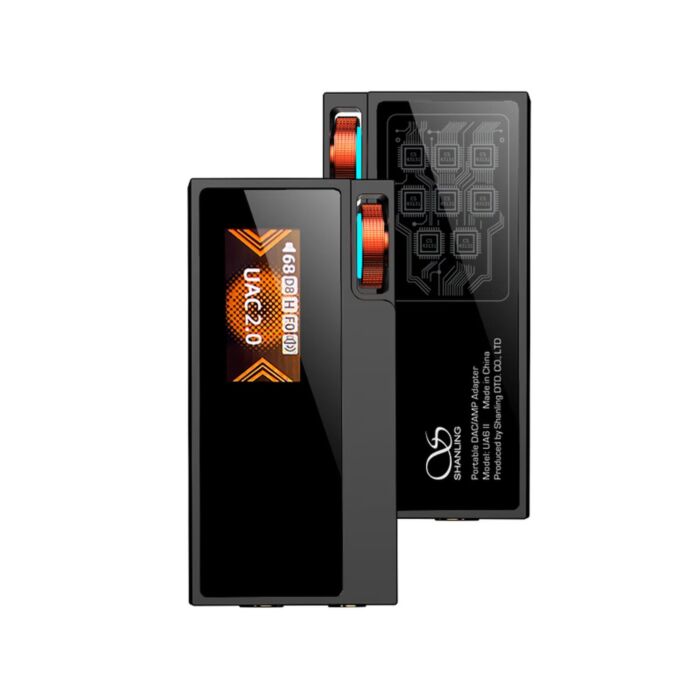

Shanling UA6 II Portable Amplifier

Shanling UA6 II Portable Amplifier:

8 × Cirrus Logic CS43131 DAC

Shanling UA6 II uses 8 × Cirrus Logic CS43131 DAC, up to 365mW@32 output power, which offers a sound quality significantly higher than any modern smartphone or standard USB headphone adapter. The Hi-Res support up to PCM 32 bit/768kHz and DSD512. With a signal-to-noise ratio (SNR) of up to 133 dB and a dynamic range of 133 dB.

Multi-outputs

Shanling UA6 II an unbalanced 3.5 mm stereo mini-jack, and a balanced 4.4 mm Pentaconn. The 4.4 mm balanced output delivers up to 365 mW @ 32Ω, while the 3.5 mm single-ended output provides up to 107 mW @ 32Ω.

Support APP Play

Full remote control via the app for Android and Windows, including volume fine-tuning, digital filter selection, gain adjustment, and firmware updates.

UAC 1.0 Mode

Switchable for compatibility with gaming consoles, including the Nintendo Switch, turning the UA6 II into a high-quality gaming DAC.

4-DAC / 8-DAC mode

Feature a switchable 4-DAC / 8-DAC mode, letting you choose between lower power consumption and maximum performance. In 8-DAC mode, listeners report noticeable improvements in low-frequency impact, soundstage depth, and overall sonic energy.

Package

Shanling UA6 II*1, Instruction Manual*1, Warranty Card*1, USB A-Type-C Cable*1, USB Type-C to C Data Cable*1.

Specification

• DAC Chipset: 8 × Cirrus Logic CS43131
• Output Power: 4.4mm Balanced: 365mW @ 32Ω
                       3.5mm Single-Ended: 107mW @ 32Ω
• SNR / Dynamic Range Balanced: 133 dB
• Single-Ended: 128 dB
• Supported Formats: PCM up to 32-bit/768kHz, Native DSD512
• Frequency Response: 20Hz – 40kHz (-0.5dB)
• THD: 0.0006%
• Output Impedance: < 0.5Ω
• Headphone Outputs: 3.5mm Single-Ended + 4.4mm Balanced
• Input: USB-C
• Display: 0.95-inch OLED Color Screen
