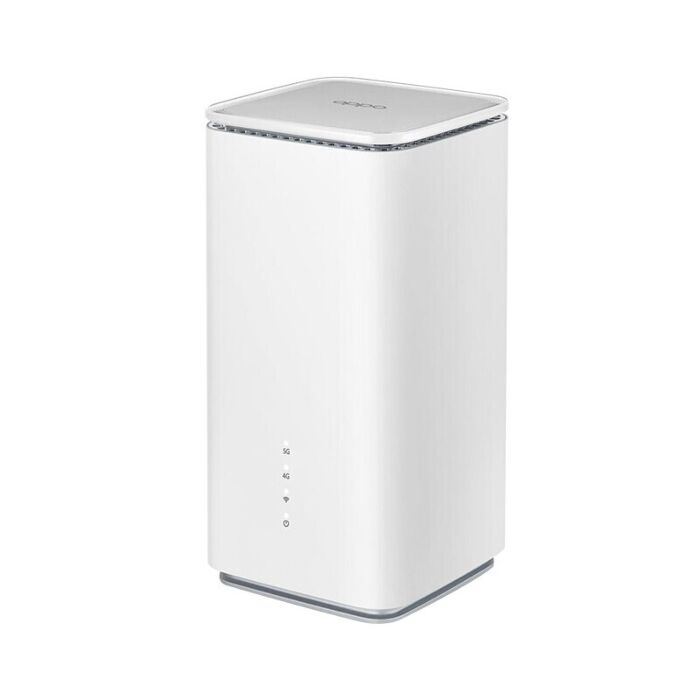

OPPO 5G CPE T1a Mobile Router

$399.00
In stock
SKU
PPCPET1A
  • SA/NSA Dual-mode 5G Full-network access, shared by multiple devices.
  • Qualcomm Snapdragon X55 7nm 5G chipset, the download rate is up to 4.1Gbps.
  • Support WiFi 6 Qualcomm QCA6391, dual-band concurrent speed up to 1775Mbps.
  • Equipped with 2 Gigabit ports at the same time, supporting wired broadband Internet access.

OPPO 5G CPE T1a Mobile Router:.



Qualcomm Snapdragon X55 5G Chipset

OPPO 5G CPE T1a Mobile Router is powered by the second-generation 7nm Qualcomm Snapdragon X55 5G chipset, enabling up to 4.1Gbpsof download speeds, ARM Cortex-A7 up to 1.5GHz.

5G Network Multi-device Sharing

Just insert a 5G SIM card, you can let mobile phones, tablets, computers, and other devices without a 5G communication module, enjoy the speed experience brought by the 5G network. At the same time, it is equipped with 2-gigabit ports and supports wired broadband Internet access.

SA/NSA Dual-mode 5G Full-network Access

The T1a supports the 5G/4G cellular network,5G: NSA/SA: n1/n41/n78/n79. 4G: FDD-LTE: B1/B3/B5/B8/B28, TDD-LTE: B34/B38/B39/B40/41.

Support WiFi 6

OPPO 5G CPE T1a Mobile Router supports WiFi 6 AX1800, the WiFi is powered by Qualcomm QCA6391 chip, dual-band concurrent speed up to 1775Mbps. WiFi 6 provides higher transmission rates for simultaneous communication for multiple devices, lower latency, and wider coverage.

O-Reserve Directional Gain to Improve Signal Quality

OPPO 5G CPE T1a can select 4 antennas with better current signal through the O-Reserve algorithm, with a 5G signal gain of up to 6.7dBi, and a more stable connection.

High-efficiency heat dissipation

The independent air guide chimney structure is specially designed for OPPO 5G CPE T1a, through a large area of heat sink conduction heat, greatly improve the cooling effect, even long-term high-speed operation can also allow the equipment to maintain a normal temperature state, to ensure stable operation

Web/APP Dual Platform For Easy Management Anytime, Anywhere

You can monitor network status, change the configuration, and easily manage CPE via the web or HeyTap smart home APP.

Specification

Product Configuration Model OPPO 5G CPE T1a
5G Chip: Qualcomm Snapdragon X55 5G chipset
CPU ARM Cortex-A7 up to 1.5GHz
Network ports 1 Gigabit LAN/WAN port, 1 Gigabit LAN port
SIM card slot 1 Nano SIM card slot
Antenna interface

Internal Antennas

Data network:  Applicable network: 5G/4G
5G networking standard SA / NSA
5G theoretical peak rate NSA: 4.1Gbps/660Mbps SA: 2.1Gbps/900Mbps
4G theoretical peak rate 4G: 2.0Gbps/210Mbps
MIMO  4G: 4x4 MIMO 5G: 4x4 MIMO
Support frequency band  5G: NSA/SA n1/n41/n78/n79; 4G: FDD-LTE:B1/3/5/8/28; TDD-LTE:B34/38/39/40/41
Wireless parameters Wireless band 2.4GHz & 5GHz, Support 5GHz Preferred
Wireless theoretical peak rate 2.4GHz: 574Mbps  5GHz: 1201Mbps
Transmission standard 2.4GHz IEEE802.11 b/g/n/ax, 2x2 MIMO 5GHz IEEE802.11 a/n/ac/ax, 2x2 MIMO
Number of simultaneous access devices 32
Attributes Size 92*92*180mm
Weight 810g
Color White
Button The power button, WPS button, Reset button
Indicator light 4G indicator light, 5G indicator light, Wi-Fi indicator light, electric source indicator light
AC/DC AC 100-240V, 50/60HZ, DC 12V/2A
Power Consumption <24 W
Operating temperature  0°C~40°C
Operating humidity 5%~95% Non-condensation
Package  Package List CPE T1a*1, network cable*1, adapter*1, quick configuration guide*1, warranty card*1
