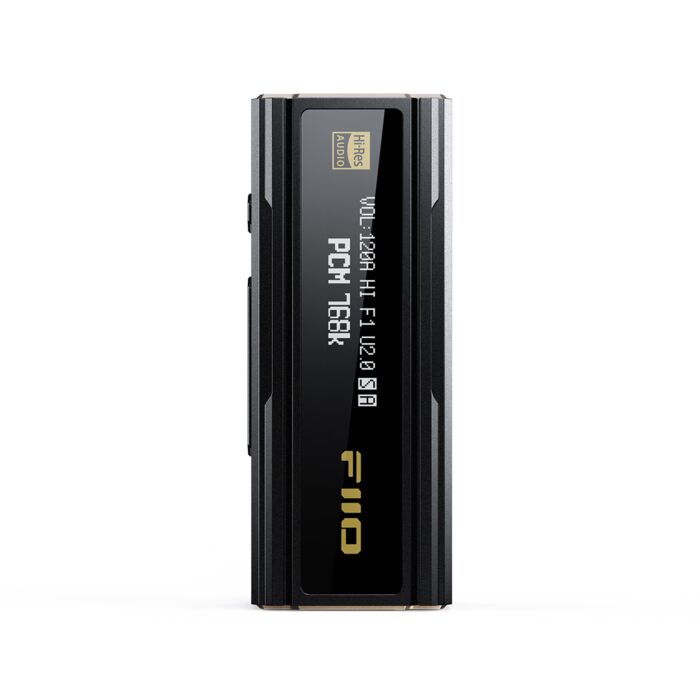

FiiO KA5 Headphone Amplifier

FiiO KA5 Headphone Amplifier:



High-performance Dual DAC chipset(Dual CS43198)

FiiO KA5 is with an advanced dual Cirrus Logic CS43198 DACs, known for their efficiency and their ability to sound good with a wide variety of music.

High-Res Decoding Listening to the Heart of Music

The FiiO KA5 supports up to 32bit/768kHz PCM and DSD256 decoding,allowing you to really dig into and
listen to the heart of your music, no matter what device you may have it connected to.

Serious Components Serious Power

For better audio performance, the KA5 utilizes a 6-layer immersion-gold PCB as well as high-performance ultra-low noise op amps for powerful, robust sound.

Flexible Local Operating System

The OLED display and physical buttons make navigating the settings menu and looking at the playback display more straightforward and intuitive. ln addition, the KA5's built-in MCU processor handles complex operations with ease, further makina the KA5 a joy to use.

UAC 1.0 Support For Truly Immersive Gaming

The KA5 supports UAC2.0 and UAC1.0 modes.With the UAC1.0 mode you can connect the KA5 to the Switch and other various devices, allowing you to experience rich and detailed sound effects that make your gaming sessions much more immersive.

Included Adapter Cables Compatible with Various Platforms

The KA5 features a detachable cable design, which allows you to switch between the included custom Type-C and Lightning OTG adapter cables - saving you from having to separately buy cables to freely switch between listening devices.*Stably compatible with Android. iOS. Windows, and MAC devices

Specification:

• Color: Black/White
• DAC: CS43198*2
• Supported formats: 768kHz/32bit, DSD256
• USB type: Type-C USB2.0
• Dimensions: About 56.3*22*12mm
• Weight: About 19g(excluding cable)
• Display: OLED screen
• Output power 1: L+R≥122mW+122mW
                         (32Ω single-ended/THD+N<1%)
• Output power 2: L+R≥265mW+265mW
                         (32Ω balanced/THD+N<1%)
• SNR 1: ≥124dB(32Ω/A-weighted/single-ended)
• SNR 2: ≥128dB(32Ω/A-weighted/balanced)
• Noise floor: PO<1.6μV(A-weighted);
                  BAL<1.8μV(A-weighted)
• Output impedance 1: <0.3Ω(32Ω load/single-ended)
• Output impedance 2: < 0.35Ω(32Ω load/balanced)
• THD+N: <0.00037%(1kHz/32Ω/single-ended)
• THD+N: <0.00037%(1kHz/-6dB@32Ω/balanced)

Package

• FiiO KA5 Headphone Amplifier*1
• USB-A male to Type-C female adapter*1,
• Type-C to Type-C OTG cable*1,
• Type-C to Lightning OTG cable*1,
• Manual*,
• Warranty card*1.
