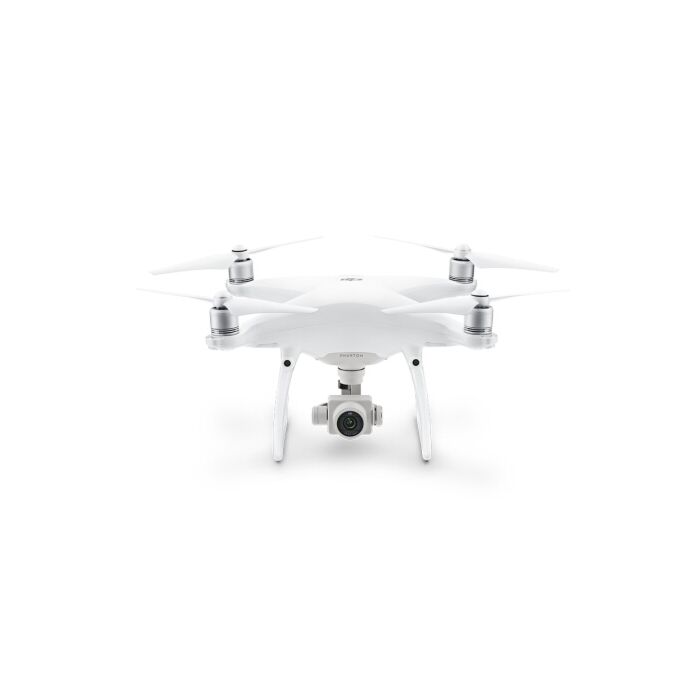

DJI Phantom 4 Advanced RC Quadcopter - RTF

$1,289.00 $1,389.00
In stock
SKU
ACCES031

● Includes all the intelligent functions of Phantom 4 Advanced.
● 20MP 1 inch CMOS camera, 4K 60fps fluent video shooting and up to 14fps Burst Mode.
● Up to 4.3 mi. ( 7km ) super long image transmission range, 2.4GHz ISM working frequency and 220ms low latency, 720P 30fps Live View.
● 30 minutes' flying and outstanding BMS for extended battery lifetime.
● Advanced FlightAutonomy system made up of 5 vision sensors.

SAVE 7%

DJI Phantom 4 Advanced RC Quadcopter - RTF:

Main Features:

  • 20MP 1 inch CMOS camera, 4K 60fps fluent video shooting and up to 14fps Burst Mode, H.264 and H.265 video coding at 100Mbps
  • A mechanical shutter is used to eliminate distortion when taking images of fast moving objects or flying at a high speed
  • Advanced FlightAutonomy system made up of 5 vision sensors, GPS and GLONASS, ultrasonic rangefinder and redundant sensors
  • Up to 4.3 mi. ( 7km ) super long image transmission range, 2.4GHz ISM working frequency and 220ms low latency, 720P 30fps Live View
  • More reliable and steady flight thanks to the dual compass modules, dual IMU units and state-of-the-art algorithm to process data
  • 30 minutes' flying and outstanding BMS for extended battery lifetime; rigid titanium alloy and magnesium alloy airframe, even lighter than Phantom 4
  • Intelligent flight with optimized Waypoints ( Draw ), ActiveTrack, TapFly, Return to Home as well as Gesture Mode for taking selfies at a distance

Specifications:

  • AIRCRAFTWeight: 1368g ( including battery and propellers )
  • Diagonal size: 350mm ( excluding propellers )
  • Max. ascent speed: S-mode: 6m/s; P-mode: 5m/s
  • Max. descent speed: S-mode: 4m/s; P-mode: 3m/s
  • Max. speed: S-mode: 45 mph ( 72 kph ); A-mode: 36 mph ( 58 kph ); P-mode: 31 mph ( 50 kph )
  • Max. tilt angle: S-mode: 42 degree; A-mode: 35 degree; P-mode: 25 degree
  • Max. angular speed: S-mode: 250 degree/s; A-mode: 150 degree/s
  • Max. service ceiling above sea level: 19685 feet ( 6000m )
  • Max. wind speed resistance: 10m/s
  • Max. flight time: approx. 30 minutes
  • Operating temperature range: 32 to 104 Deg.F ( 0 to 40 Deg.C )
  • Satellite positioning system: GPS / GLONASS
  • Hover accuracy range: vertical: + / - 0.1m ( with Vision Positioning ); + / - 0.5m ( with GPS Positioning ); horizontal: + / - 0.3m ( with Vision Positioning ); + / - 1.5m ( with GPS Positioning )

VISION Positioning

  • Vision system: Forward Vision System, Downward Vision System
  • Velocity range: 31 mph ( 50 kph ) or less at 6.6ft ( 2m ) above ground
  • Altitude range: 0 - 33 feet ( 0 - 10m )
  • Operating range: 0 - 33 feet ( 0 - 10m )
  • Obstacle sensory range: 2 - 98 feet ( 0.7 - 30m )
  • FOV: forward: 60 degree ( horizontal ), + / - 27 degree ( vertical ); downward: 70 degree ( front and rear ), 50 degree ( left and right )
  • Measuring frequency: forward: 10Hz, downward: 20Hz
  • Operating environment: surface with clear pattern and adequate lighting ( more than 15 lux )

Transmitter

  • Operating frequency: 2.400 - 2.483GHz
  • Max. transmission distance: FCC: 4.3 mi. ( 7km ); CE: 2.2 mi. ( 3.5km ); SRRC: 2.5 mi. ( 4km )
  • Operating temperature range: 32 to 104 Deg.F ( 0 to 40 Deg.C )
  • Battery: 6000mAh 2S LiPo
  • Transmitter power ( EIRP ): FCC: 26dBm; CE: 17dBm; SRRC: 20dBm
  • Operating current / voltage: 1.2A at 7.4V
  • Video output port: GL300C: USB
  • Mobile device holder: GL300C: for tablets ans smart phones ( not included )

Intelligent Flight Battery

  • Capacity: 5870mAh
  • Voltage: 15.2V
  • Battery type: 4S LiPo
  • Energy: 89.2Wh
  • Net weight: 468g
  • Charging temperature range: 41 to 104 Deg.F ( 5 to 40 Deg.C )
  • Max. Charging power: 100W

Gimbal

  • Stabilization: 3-axis ( pitch, roll, yaw )
  • Controllable range: pitch: -90 to +30 degree
  • Max. controllable angular speed: pitch: 90 degree/s
  • Angular control accuracy: + / - 0.02 degree

Camera

  • Sensor: 1 inch CMOS, effective pixels: 20MP
  • Lens: 84-degree FOV 8.8mm / 24mm ( 35mm format equivalent ) f/2.8 - f1.1 auto focus at 1m to infinity
  • ISO range: video: 100 - 3200 ( auto ), 100 - 6400 ( manual ); photo: 100 - 3200 ( auto ); 100 - 128000 ( manual )
  • Mechanical shutter speed: 8 - 1/2000s
  • Electronic shutter speed: 8 - 1/8000s
  • Image size: 3:2 aspect ratio: 5472 x 3648; 4:3 aspect ratio: 4864 x 3648; 16:9 aspect ratio: 5472 x 3078
  • PIV image size: 4096 x 2160; 3840 x 2160; 2720 x 1530; 1920 x 1080; 1280 x 720
  • Still photography modes: Single Shot; Burst Shooting: 3 / 5 / 7 / 10 / 14 frames; Auto Exposure Bracketing ( AEB ): 3 / 5 bracketed frames at 0.7 EV Bias
  • Interval: 2 / 3 / 5 / 7 / 10 / 15 / 20 / 30 / 60s
  • Video recording modes: H.265; H.264; C4K: 4094 x 2160; 4K: 3840 x 2160; 2.7K: 2720 x 1530; FHD: 1920 x 1080; HD: 1280 x 720
  • Max. video bitrate: 100Mbps
  • Supported file system: FAT32 ( 32GB or less ); exFAT ( more than 32GB )
  • Photo: JPEG, DNG ( RAW ), JPEG + DNG
  • Video: MP4 / MOV ( AVC/H.264, HEVC/H.265 )
  • Supported micro SD card: max. capacity: 128GB; write speed: 15MB/s or more, Class 10 or UHS-1 rating
  • Operating temperature range: 32 to 104 Deg.F ( 0 to 40 Deg.C )

Charger

  • Voltage: 17.5V
  • Rated power: 100W

App / Live View

  • Mobile app: DJI GO 4
  • Live View working frequency: 2.4GHz ISM
  • Live View quality: 720P at 30fps
  • Latency: Phantom 4 Advanced: 220ms ( depending on condition and mobile device )
  • Required operating system: iOS 9.0 or later, Android 4.4 or later
  • App download: App Store, Google Play

General Features: Brushless Version,Camera,Radio Control,WiFi APP Control,WiFi FPV
Functions: Automatic Return,Forward/backward,Hover,Sideward flight,Slow down,Speed up,Tap to Fly,Turn left/right,Up/down,Visual Tracking,Waypoints,WiFi Connection,With light
Size: Large
Satellite System: GLONASS,GPS
Diagonal Length: 350mm ( excluding propellers )
Max Speed: S-mode: 45 mph ( 72 kph ); A-mode: 36 mph ( 58 kph ); P-mode: 31 mph ( 50 kph )
Max Ascent Speed: S-mode: 6m/s; P-mode: 5m/s
Max Descent Speed: S-mode: 4m/s; P-mode: 3m/s
Hover Accuracy: + / - 0.1m ( with Vision Positioning ); + / - 0.5m ( with GPS Positioning ); horizontal: + / - 0.3m ( with Vision Positioning ); + / - 1.5m ( with GPS Positioning )
Built-in Gyro: 6 Axis Gyro
Kit Types: RTF
Level: Advanced Level
Connectivity Remote Control: 2.4GHz Wireless Remote Control
Channel: Unknown
Radio Mode: Mode 2 (Left-hand Throttle)
Control Distance: 7km
Compatible with Additional Gimbal: Yes
FPV Distance: 7km
Transmitter Power: Built-in rechargeable battery
Model Power: Built-in rechargeable battery
Battery Battery: 5870mAh 14.8V 4S LiPo
Flying Time: About 30mins
Battery Weight: 468g
Camera Camera Pixels: 20MP
Video Resolution: C4K: 4094 x 2160; 4K: 3840 x 2160; 2.7K: 2720 x 1530; FHD: 1920 x 1080; HD: 1280 x 720
Package Contents Package Contents: 1 x Aircraft Body ( Intelligent Flight Battery Included ), 1 x Transmitter, 8 x Propeller, 1 x Battery Charger, 1 x Power Cable, 1 x Set of English Manuals, 1 x Gimbal Clamp, 1 x USB OTG Module, 1 x Micro USB Cable, 1 x 16GB Micro SD Card, 1 x Carrying Case
